Bluetooth na Wi na Sub

Myezi yiŵiri iyo yajumphapo, unyolo wa masitolo ghakurughakuru gha pakatikati - ku Southern Europe ukatipempha kuti tizunurepo mazgu ghakulembeka pa mashelufu gha pa kompyuta gha masitolo 22. Gulu lawo lakugula likaŵa kuti laŵikika kale ndondomeko zitatu zakupambanapambana - yimoza yikugwiliskira ntchito Bluetooth LE, yinyake pa Wi-Fi, ndipo yinyake pa wayilesi ya 433 MHz. Munthu waliyose uyo wakaguliskanga vinthu wakayowoyanga kuti vyawo ndivyo vikaŵa viwemi chomene. Palije uyo wakalongosora kuti ni mu mikhaliro wuli iyo yikaŵa yiheni comene. Kudumbiskana uku kukapangiska kuti tilembe chigaŵa ichi.

Mabanja ghatatu ghambura waya ghakulamulira kutumizgika kwa ESL sonosono apa: Bluetooth Nkhongono Yichoko (BLE, chomenechomene kufuma pa 5.4), Wi -Fi, na Sub- GHz wayilesi (433 MHz ku Asia, 868 MHz ku Europe, 915 MHz ku North America). Protocol yiliyose yikumazga suzgo leneco. Chilichose chikupanga vyakuguliska ivyo maburosha gha ŵakuguliska ghakuwoneska pasi. Apa pali ivyo tawona mu malo gha masitolo ghanenesko.

Bluetooth LE: Kujulika Muyezo, Kuchali Kukura pa Sikelo

Bluetooth ili na nkhongono zikuru kuseri kwake. Bluetooth SIG yikasindikizga ESL Profile yakujipeleka iyo yikapangika pa Bluetooth 5.4 ya PAwR (Kusaska Nyengo na Nyengo na Mazgoro) iyo yili na - nthowa iyo yikupangiska kuti malo ghamoza ghakunjilirapo ghapharazge malango ku vikwi vya malemba mu nyengo zakunozgeka, ndipo pamanyuma pake ŵakupokera mazgoro gha munthu waliyose kwambura mazgoro.

Silicon Labs wakayezga ivi pa netiweki ya 1,500 mu labotale yawo. EM Microelectronic wakatumizga em|bleu SoC pa 1.8 × 1.8 mm pera na 200 nA yakugona mwakuya sono - yichoko chomene ndiposo yakuchepa mwakukwana kuti yiŵe mukati nanga nkhu2.66-mainchi ya E-ink. Pakuti vipangizo vya Bluetooth vyakujumpha 5 biliyoni vikutumizgika chaka chilichose, mtengo wa vigaŵa ukusanga phindu kufuma ku chuma chikuru chomene.

Kwa ŵakuguliska, chinthu chakuzirwa chomene nkhusinthasintha kwa ŵakuguliska. Muyezo wakujulika ukung'anamura - pafupifupi mu fundo - kuti mungasakanizga malo ghakunjilirapo kufuma kwa wakupeleka yumoza na malemba kufuma kwa munyake. Icho nchifukwa chakuzirwa kufuma ku lock ya ŵakuguliska-mu iyo yasuzga ESL kwa vyaka vinandi. Mafunde ghakugona pasi pa 2 μA ghakumanyikwa na chipsets ya BLE ESL, ndipo Bluetooth 5.4 spec yikukhozgera pafupifupi malemba 32,600 pa netiweki ya malo ghakunjilirapo pa pepala.

Kugwira: "pa pepala" nkhani pano. Kutumizgika kwa vyakurya vikuru- pa BLE kuchali kwachoko chomene pakuyaniska na ndondomeko za mweneko izo zakhala zikuchitika kwa vyaka khumi. Rigado, wakuguliska chipata cha IoT uyo wakugwira ntchito mu ESL, wakuŵika ndalama za chipata pa $ 1,000 kufika pa $ 2,000 zakuŵikika - ndipo sitoro yikuru yingakhumbikwira khumi panji kujumphirapo. BLE yikugwira ntchito pa 2.4 GHz, kugaŵana spectrum na Wi-Fi routers, mafoni gha makasitomala, ma microwave, na chipangizo chilichose chambura waya mu nyumba. Mu sitoro iyo muli ŵanthu ŵanandi, kuzura uku kungapangiska kuti mitengo yileke kusintha pa nyengo iyo ŵanthu ŵakuŵa ŵanandi.

Kuyana makora: ma pharmacy, ma boutiques, na masitolo gha pakati pa-pasi pa 2,000 m2 - chomenechomene awo ŵali kale na BLE beacons kuti ŵalondezge katundu. Ŵakuguliska ŵakupenja5.8-mainchi BLE-wakukwaniska malembo gha pa mashelufukuti update kufuma pa tablet kwambura vipangizo vyakuzirwa vizamusanga kuti protocol iyi njakukondweska.

Wi-Fi: Gwiliskirani nchito Network yinu iyo yilipo - Kweni Bajeti ya Mabatire

Nkhani yake njakunyoloka: sitoro yinu yikugwiliskira kale ntchito Wi-Fi mu msewu uliwose, ntheura lumbani vipata viphya na kulumikizga ma ESL ghinu mwaluŵiro ku netiweki iyo yilipo. Kwa maunyolo ghakuru gha bizinesi agho ghaŵika kale ndalama zinandi mu malo ghakunjilirapo gha malonda na kuvikilira kose, masamu ghakusazga ghakuwoneka ghakukondweska.

Wi-Fi nayo wakupereka data yikuru kuluska BLE panji Sub-GHz. Uwemi uwu ukuwoneka para mukukankhira vithuzithuzi vyakuwoneka makora - vithuzithuzi vya katundu, vithuzithuzi vyakusaska - kuLCD-kukhazikika pa vithuzithuzi vya mitengo ya digitom'malo mwa ma tag gha E-ink ghambura kusuzga. ASikirini ya LCD ya mainchi 15.6kuseŵezeska malonda pa endcap kukukhumba bandwidth iyo E-ink mitengo tags yikukhumba yayi.

Suzgo likuwoneka mu malo ghaŵiri. Chakwamba, kugwiriskira ncito magesi. Wi-Fi yikukopa magesi ghanandi chomene kuluska BLE panji Sub-GHz pa nyengo yiliyose yakutumizga. Lebo ya E-ink pa Sub-GHz radio yingagwira ntchito vyaka vinkhondi panji vinkhondi na vinayi pa selo ya ndalama na kusintha kamoza panji katatu zuŵa lililose. Lembo yimoza pa Wi-Fi? Myezi khumi na yiŵiri mpaka khumi na eyiti. Pa sikelo - vikwi vya ma lebula mu masitolo yanandi - ivyo vikung'anamura kuti pulogiramu yakusintha mabatire yakuwerezgawerezga gulu linu lakugwira ntchito likwenera kusanga. Chachiŵiri, kukhuŵara kwa netiweki. Wi-Fi ESLs yikupikisana pa nyengo ya mlengalenga na ma terminal gha POS, vipangizo vya makasitomala, ma scanner ghakuyegha mu mawoko, na malo ghakujiwonera. Pa nyengo ya nsonga za pa Sabata namise, mpikisano uwo ngwakusambizga waka yayi.

Kuyana makora: ŵamalonda ŵa bizinesi awo ŵali na vyakupangika vya Wi-Fi vyakukhwima, vyakupangika makora, masitolo agho ghakugwira ntchito na vimanyikwiro vya LCD vya digito (apo umoyo wa batire ngwambura kukhumbikwa chifukwa vithuzithuzi vikuŵikika), na kutumizgika kukupimika mu mazana m’malo mwa vikwi khumi vya vimanyikwiro.

GHz (433/915 MHz): Palije Kukongola, Mtunda Utali, Batiri Yitali

Sub-GHz wayilesi ilije gulu la malonda ilo likulimbikiska umo Bluetooth SIG yikuchitira BLE. Mapulogalamu ghanandi gha Sub-GHz ESL ghakugwiliskira ntchito ndondomeko zakukhwaskana na awo ŵakupanga chimanyikwiro. Palije mbiri yakukolerana. Kusintha ŵamalonda kukung'anamura kusintha mtolo wose wa kuyowoyeskana.

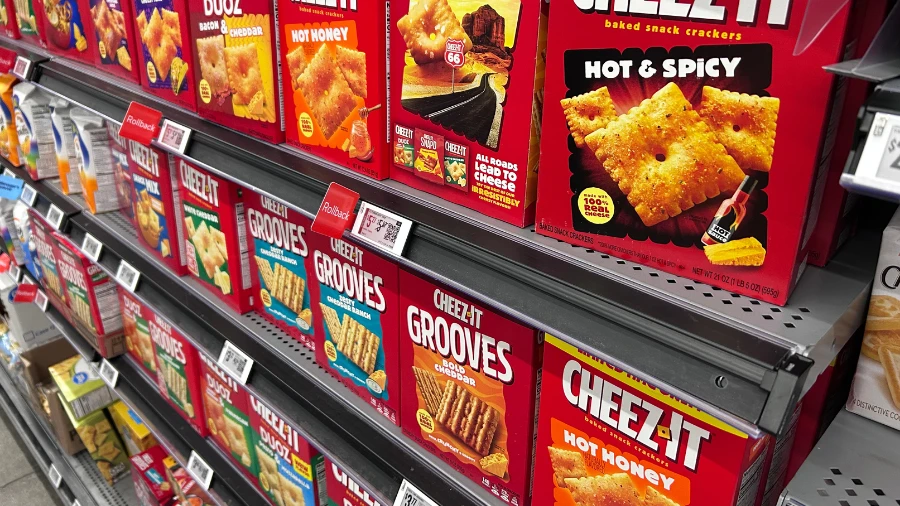

Ndipouli, pa mitundu yinyake ya sitoro, sayansi yikupangiska kuti yiŵe chisankho chakugwira ntchito chomene. Ma frequency ghapasi ghakupanga ma wavelength ghatali. Mafunde yatali ghakunjira mu mashelufu gha visulo, makoma ghakugaŵira simenti, na viŵiya vyakuwoneskera vya firiji mwakukwana comene kuluska vimanyikwiro vya 2.4 GHz. Display Data, UK -based ESL provider, wakazenga pulatifomu yawo yose kuzungulira Sub-1 GHz chifukwa cha ichi nadi - mtundu ukuru na kunjira kwa chiziŵizgo mu malo ghakusuzga ghakuguliska. Malo ghakunjilirapo gha Sub-GHz ghamoza ghakukhwaska malo ghakuru chomene kuluska BLE panji Wi-Fi yake. Malo ghachoko waka ghakunjilirapo ghakung'anamura kuti mtengo wa vyakumangamanga ukuchepa ndiposo kuti paŵe ndondomeko yipusu ya netiweki.

Umoyo wa batire ndiwo chinthu chinyake chakuzirwa chomene. Ulongozgi wa Silicon Labs 'ESL design ukulongosora kuti kufika vyaka vinkhondi mpaka khumi pa selo ya ndalama ya CR2032 kukukhumba bajeti ya pafupifupi ya sonosono pasi pa 10 μA - Sub-GHz FG22 SoC yawo yikukwaniska 0.17 μA mu tulo twakuzika. Kwachikuru-mtundu E-malemba gha inkimu malo ghakusungiramo katundu panji gha hypermarket na chimoza panji vitatu vyakusintha zuŵa lililose, Sub-GHz nyengo zose yikupereka umoyo utali chomene wakugwira ntchito.

Kuyana makora: ma hypermarkets na ŵamalonda ŵakuru -bokosi pachanya pa 5,000 m2, malo ghakusungiramo katundu na malo ghakupelekerako katundu na visulo, unyolo wakuzizima na malo ghakuzizima, na kutumizgika kulikose uko kuchepeska vyakumangamanga na kukuzga umoyo wa batire kukutora pakwamba kuluska bandwidth. Makasitomala ŵithu ŵakuguzira malemba gha mashelufu gha E-ink mu masitolo ghakurughakuru - nyengo zose ŵakukopa ku Sub-GHz.

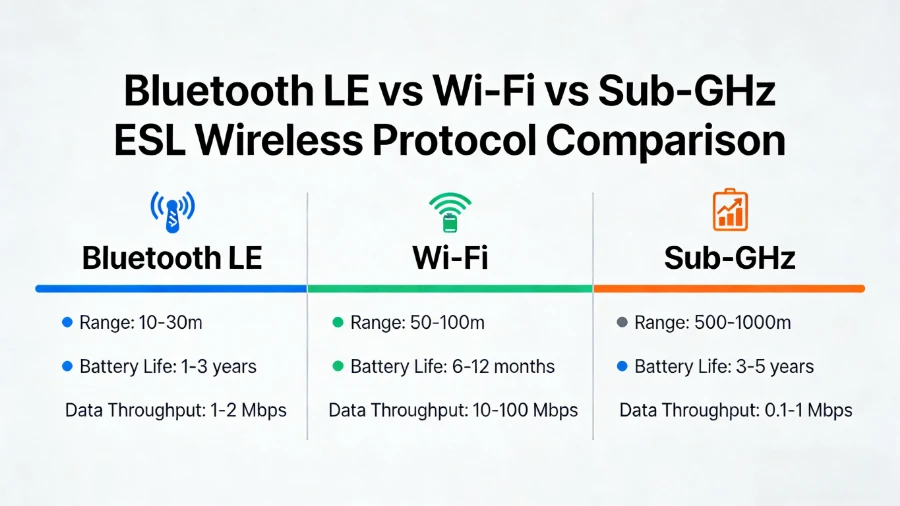

Mbali-na-Kuyaniska Mbali

Kusankha kwa Protocol Kukuchitika mu Sitolo Yinu Yose

Chinthu chinyake icho nkhani zakuyaniska za protocol zikusoŵa nyengo zose: netiweki yinu ya ESL yambura waya yikugwira ntchito payokha yayi. Malo ghakunjilirapo, backend ya mitengo, pulogiramu yakulongozgera - vyose vikukhwaska ndondomeko zinyake za digito mu sitoro. Usange mukuchimbira .self-ma kiosks ghakukhwaskakuti ŵawone, ma kiosk agha ghakukoka mitengo kufuma ku database yimoza. Usange shelf-edge LCD bar yikulongora vyakusaska mu msewu, injini ya vyakulembeka iyo yikulyeska vithuzithuzi ivi yingapangiskaso makampeni pa E-ink labels yinu - kweni pekha usange ndondomeko zikugaŵana API layer yimoza.

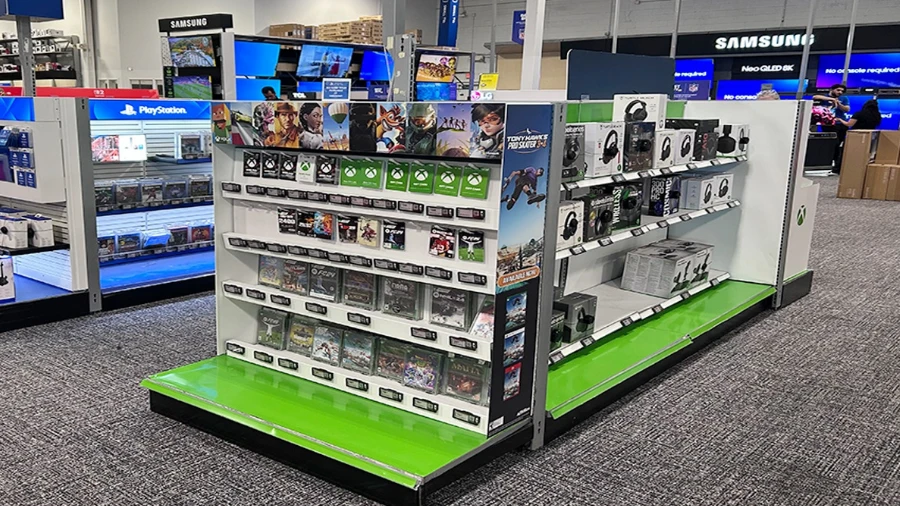

Tikawona vyakuchitika vyakutowa chomene apo makasitomala ŵakunozga vyakuŵika ESL yawo pamoza na kiosk yawo na kuŵika vimanyikwiro vya digito, nga ni mapulojekiti ghatatu ghakupambanapambana gha IT yayi. Para mtengo uwo kasitomala wakuwona pa chimanyikwiro cha mashelufu, chithuzithuzi cha LCD cha endcap, na self-checkout terminal vyose vikufuma ku malo ghamoza, mitengo yikudandawura - fundo yimoza yikuru chomene yakususkana mu vyakurya - yikukhira pafupi na zero.

Mafumbo Ghatatu Pambere Mundachite

Kasi pulani yinu ya pasi yikuwoneka wuli?Pharmacy ya 400 m2 na hypermarket ya 12,000 m2 ni malo ghakupambanapambana gha pa wayilesi. BLE yikugwira ntchito yakwamba na malo ghaŵiri panji ghatatu ghakunjilirapo. Yachiŵiri yikwenera kuti yikukhumbikwira Sub-GHz kuti yileke kuŵika vinyakhe pa denga na vipata.

Kasi ni vinthu wuli ivyo mukulongora?Mitengo yakukhazikika pa E-ink? Protocol yiliyose yikuchitira nthena. Kasi vikusaska mavidiyo pa vithuzithuzi vya LCD ivyo vikugwira ntchito? Mukukhumbikwira Wi-Fi kuti yiŵe na vyakuchitika. Kasi mitengo ya Flash iyo yikusintha kanandi waka pa ora? Simikizani kuti protocol yinu yingasunga voliyumu ya kusintha kwambula kutaya mabatire mwaluŵiro.

Kasi ni vichi vinyake ivyo vikugaŵana na ma airwaves ghinu?Sitolo iyo yili kale na 2.4 GHz - kasitomala Wi-Fi, masensa gha IoT, maskena gha mu mawoko - ghazamulimbana na dongosolo linyake la 2.4 GHz ilo lili kuŵikika pachanya. Sub-GHz yikugwira ntchito mu gulu la ŵanthu ŵachoko chomene.

Palije protocol yimoza iyo njakwenelera pa caru cose. Usange uyo wakupeleka ESL wakupeleka waka chisankho chimoza cha waya ndipo wangalongosora yayi apo chikusoŵa, ichi chikumuphalirani chinthu chinyake. Usange mukukhumba kuyezga malembo mu ndondomeko zose mu sitoro yinu yeneco pambere mundacite pa sikelo,Pemphani masampulo ghakuwonera- masabata ghaŵiri mu msewu umoza wakuvumbura vinandi kuluska pepala lililose la spec panji slide ya ŵakuguliska.
